Actuation & automation
![INTERAPP ELECTRIC QUARTER TURN ACTUATOR](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/interapp-electric-quarter-turn-actuator.jpg?mw=720&rev=1b9c47df-b20d-4676-a1f5-27bcc9c71fe4&hash=B2428306C231D1CD7384CB449700C9A2)

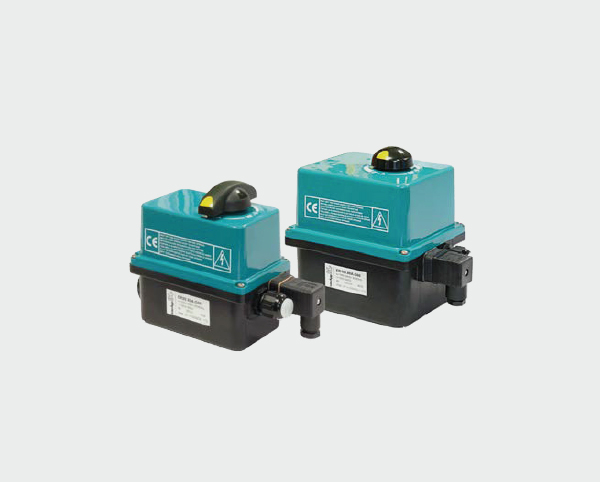

InterApp electric quarter turn actuator
Variant: N/A - Valpes ER and V series, ER 10Nm to 100Nm, VR & VS 25Nm to 300Nm, VT 600Nm to 2400Nm, IP66 & IP68, adjustable limit switches, 12v, 24vdc, 240v and 415v. Optional extras include special coating, ratings and multiple internal features. Contact your local representative for more information.
![INTERAPP MOTION ACTUATOR](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/interapp-motion-actuator.jpg?mw=720&rev=0ef367fa-f255-4ae7-9a19-4ec964110deb&hash=B4DFC267FACDDD100746F23BAA931062)

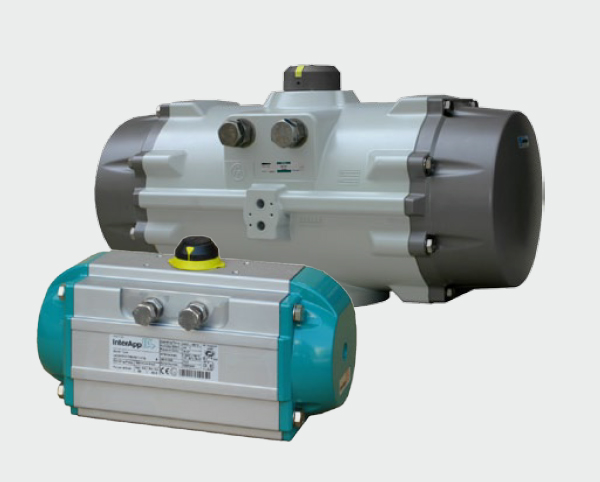

InterApp motion actuator
Variant: N/A - Rack and Pinion, 15Nm to 10007Nm, IA.D double acting, IA.S single acting, compact design, identical body for IA.DA & IA.SR and supply air 3-8 bar. Working temp -40oC to 80oC, connection to EN ISO 5211, VDI/VDE 3845 namur for accessories, actuator IP67 standard to ATEX 94/9/EC and extruded aluminium with ALODUR corrosion protection.
![ORBINOX LINEAL ACTUATOR](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/orbinox-lineal-actuator.jpg?mw=720&rev=f9d4c5aa-27f7-4d42-9da6-dfb853a42877&hash=F0DC583911421F54334DF26DF500EEB3)

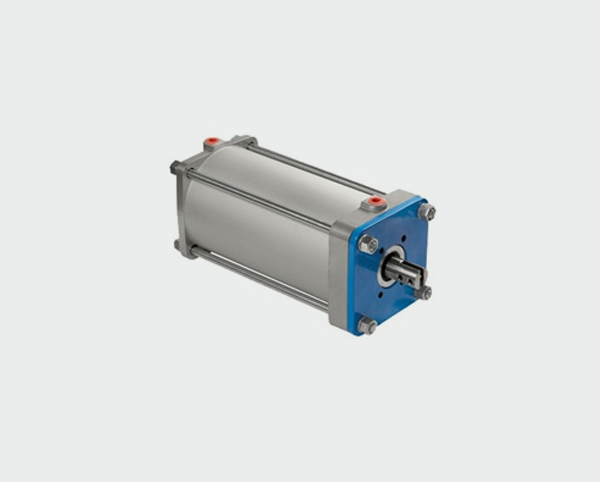

Orbinox lineal actuator
Variant: N/A - Pneumatic cylinder, bore sizes 4” to 12”, double acting, aluminium end caps and barrels up to 250mm including barrels 300m composite. Optional extras include anodized aluminium, detachable clevis, magnetic switches and sensing piston ring, single acting up to 200mm bore, manual override system and namur block for solenoids.
![INTERAPP WORM GEARBOX](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/interapp-worm-gearbox.jpg?mw=720&rev=f53f9e1f-057b-4393-91a2-66a6a615a87f&hash=79F0A81E533073E4B7B947C0F6E986E9)

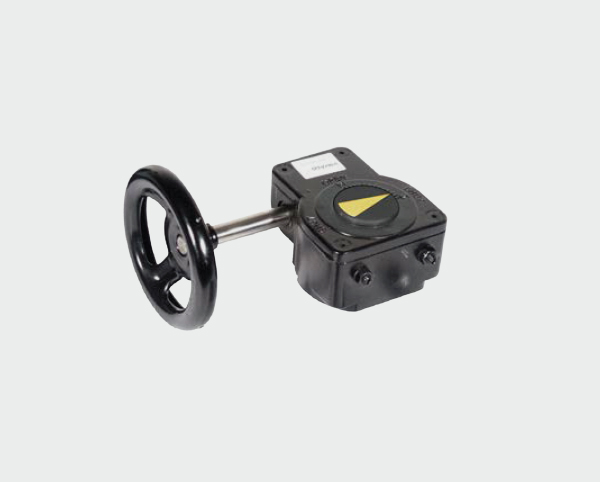

InterApp worm gearbox
Variant: N/A - Quarter turn worm gearboxes for butterfly valves, ball valves and plug valves. Various sizes, materials, coatings, rations and IP ratings.Optional extras include lock out, electronic indication and ISO input flange. Contact your local representative for more information.
![BEVEL & SPUR GEARBOX](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/bevel--spur-gearbox.jpg?mw=720&rev=569ef746-0e15-4e1d-bc92-0534b3e0fe84&hash=BC29F4FC98805E7B8D1AB0527E91F7A8)

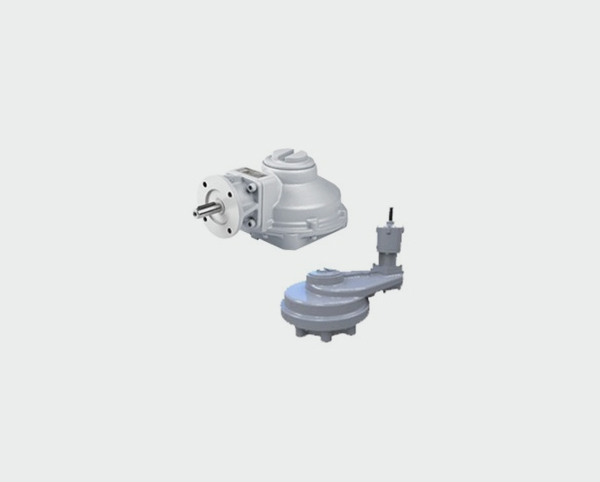

Bevel & spur gearbox
Variant: N/A - Multi turn bevel and spur gearboxes for knife gate valves and gate valves. Various sizes, materials, coatings, rations and IP ratings. Optional extras include lock out, electronic indication, ISO input flange, dual input and input shaft direction. Contact your local representative for more information.
![MANUAL OVERRIDE GEARBOX](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/manual-override-gearbox.jpg?mw=720&rev=1ab6b808-f151-41f6-b92c-d7aadf969aa0&hash=877394EF37FC07EF145E4FEBC9871DB8)

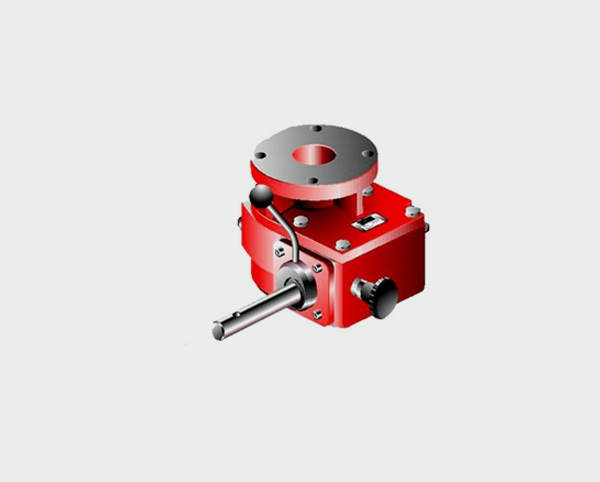

Manual override gearbox
Variant: N/A - Declutchable manual override for Pneumatic actuated butterfly valves and ball valves. Contact your local representative for more information.
![LIMIT SWITCH BOX](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/limit-switch-box.jpg?mw=720&rev=4bc62ba8-f88c-4131-a556-4347cca9a804&hash=677171CFA667ECF371DB63F52BE0AA52)

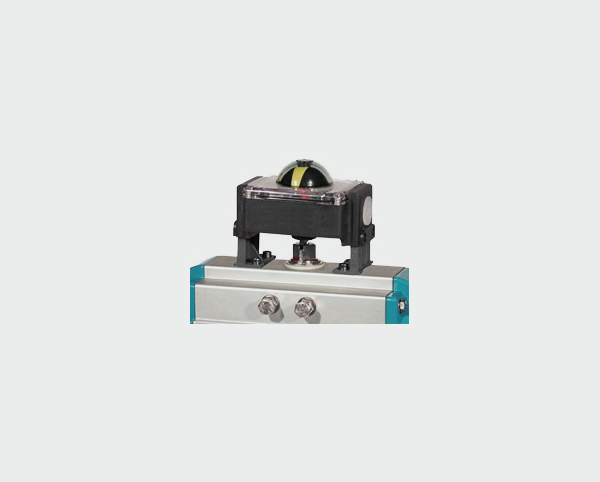

Limit switch box
Variant: N/A - SPDT micro switches, proximity switches, IP65, IP67 or IP68 and Ex II 1G Ex ia IIC T6 proximity.
![PROXIMITY SWITCH](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/proximity-switch1.jpg?mw=720&rev=2891ffba-0d88-4eaf-88be-817582d8bf5f&hash=F5DE0F16C649C90CF719E983EE78E38E)

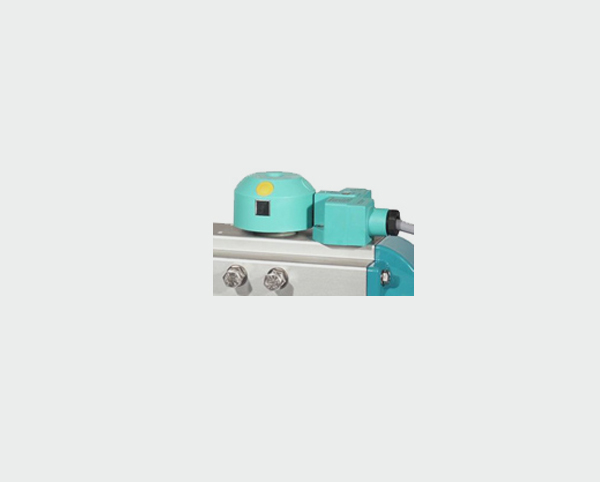

Proximity switch
Variant: N/A - Compact limit switch boxes, Pepperl+Fuchs proximity, puck and sensor system, F25/F25k indoor, F31K2 outdoor, hazardous location version available, cable, plug or plug in terminal connections.
![PROXIMITY SWITCH](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/proximity-switch.jpg?mw=720&rev=88a775d4-a18e-48c9-a227-2a2481b2ca63&hash=BE81CB28BEF87F404F6E5C8229CA7900)

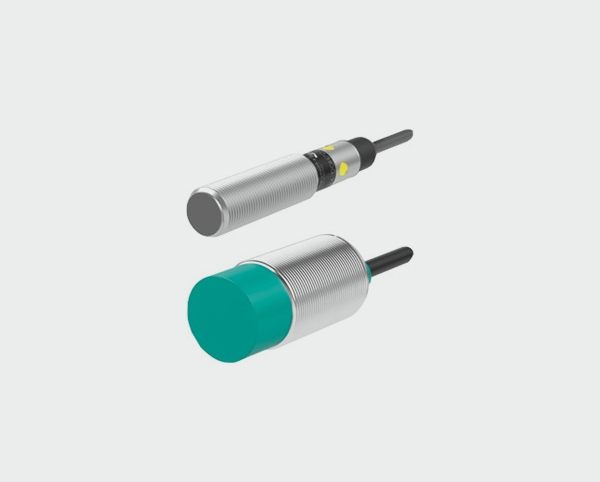

Proximity switch
Variant: N/A - Pepperl+Fuchs proximity, sensing range 1mm to 50mm, cable and connection types, Stainless and chemical resistant housings, 2, 3 or 4 wire.
![SOLENOID VALVE](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/solenoid-valve.jpg?mw=720&rev=0b982e02-4344-4557-9d7c-0f3280033fb3&hash=070B2E8C96D0B225504FA41B295C8029)

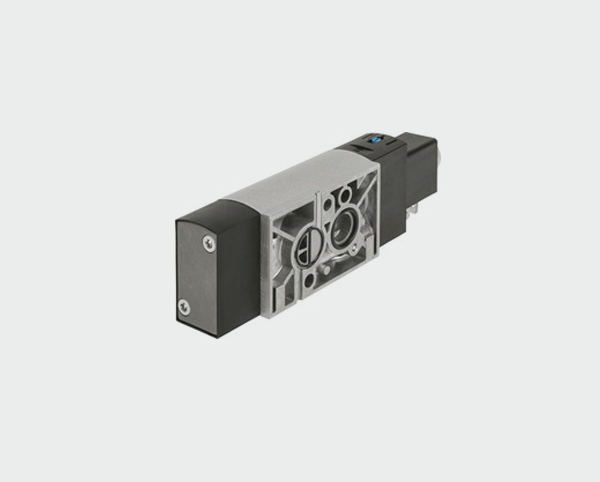

Solenoid valve
Variant: N/A - 1000 KPA pressure rating, namur mount, aluminium construction and 3/2-5/2 conversion plate. Optional extras include 24DC supply, 240VAC supply, 24VAC supply, body materials and Ex versions.
![POSITIONER](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/positioner.jpg?mw=720&rev=6e4d1b45-caae-437f-a48f-677c8a07a738&hash=A2354621C452F53E7031F2F998612AB8)

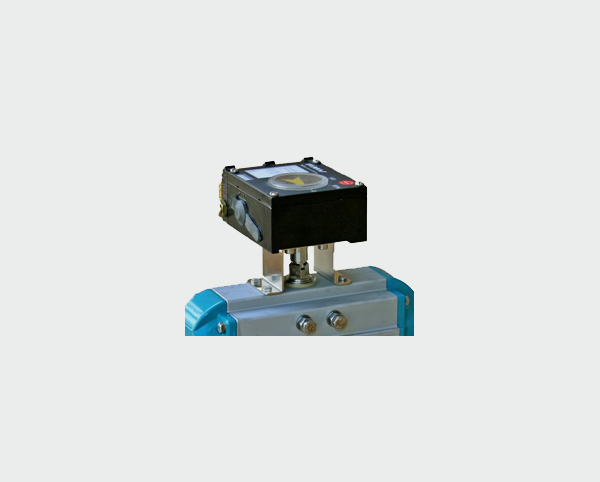

Positioner
Variant: N/A - Electro Pneumatic, 4-20mA, double or single acting.
![SMART VALVE POSITIONER](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/smart-valve-positioner.jpg?mw=720&rev=34754275-10d7-4a0c-bc13-379301238053&hash=E7BD3A067F021A52E8682FA8756E18BD)

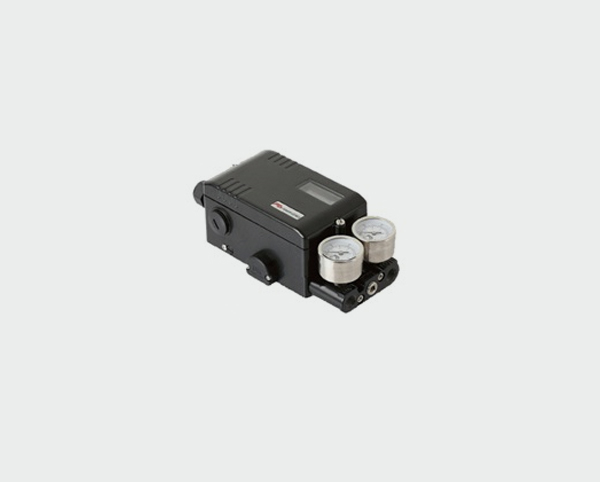

Smart valve positioner
Variant: N/A - Auto calibration, digital 4-20mA with double or single acting capabilities. Available with 2x SPDT switches, 4-20mA output transmitter, intrinsically safe Ex ia IIC T6/T5, Hart, profibus and field bus communication, Stainless body, flame proof and fail freeze positioner.
