Butterfly valves

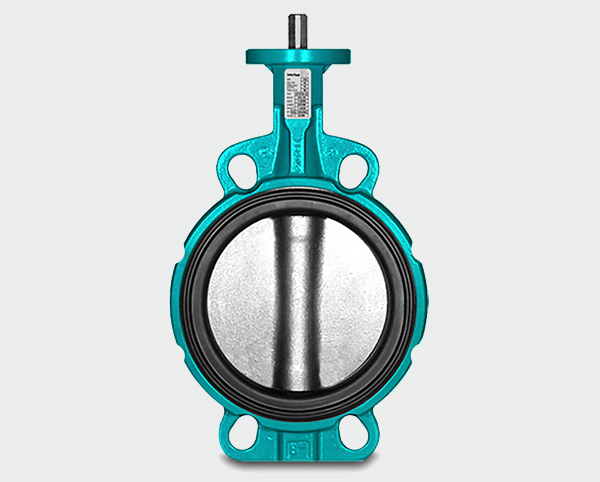

Variant: D3 - DN25-600, PN16, 316 Stainless Steel disc and replaceable liner. Various seat and disc materials available including PN20 rating.

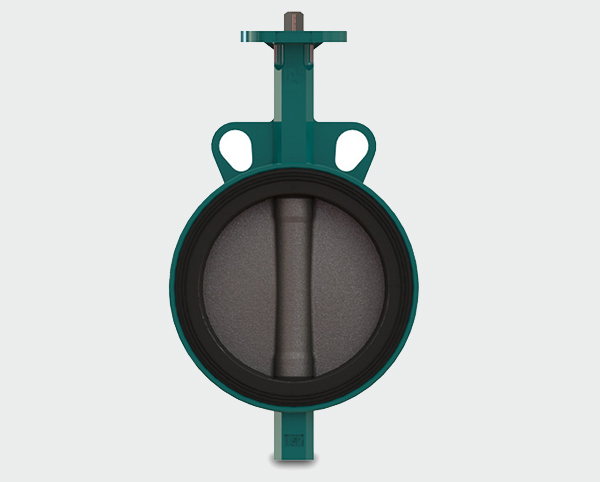

Variant: D1 - DN25-1000, PN16, 316 Stainless Steel disc and replaceable liner. Various seat and disc materials available including PN20 rating.

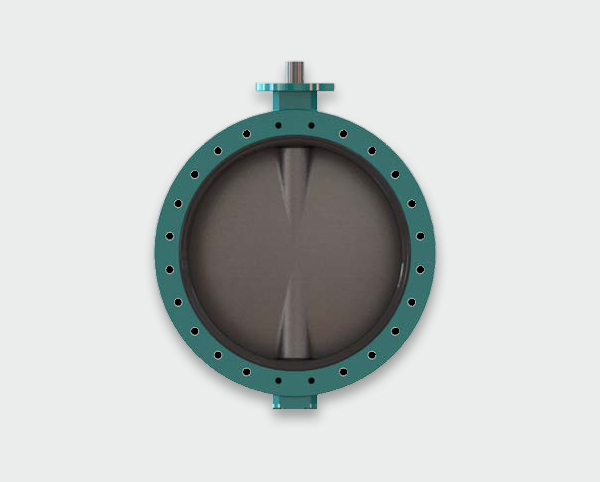

Variant: D4 - DN150-1400, PN16, 316 Stainless Steel disc and replaceable liner. Various seat and disc materials available including PN20 rating and lugged or through holes.

Variant: N/A - Wafer type from DN25-600 and lugged type from DN50-400. 316 Stainless Steel disc and replaceable liner. Various seat and disc materials available. Optional extras include Stainless body, PN20 rating and high temperatures.

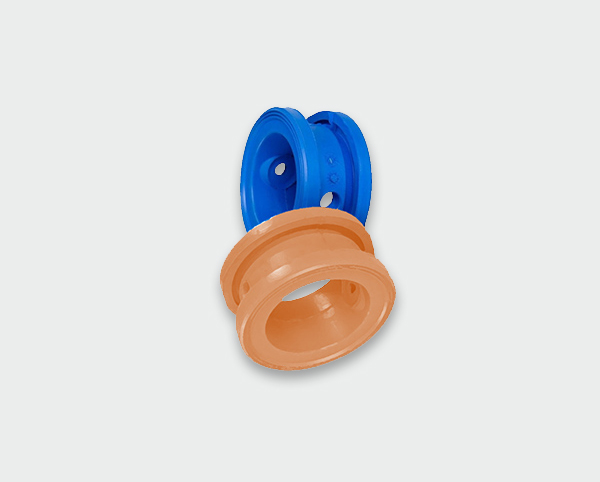

Variant: N/A - EPDM, EPDM DW, EPDM HT, EPDM White FDA, EPDM Blue FDA, Nitrile, Nitrile White FDA, Nitrile Blue FDA, Nitrile Gas, Nitrile Hydrogenated, Hypalon, ECO, Viton, Viton BIO, Viton GF, Silcon, Silicon FDA, Flucast AB/E, Flucast AB/N, Flucast AB/P and Flucast AB/T .

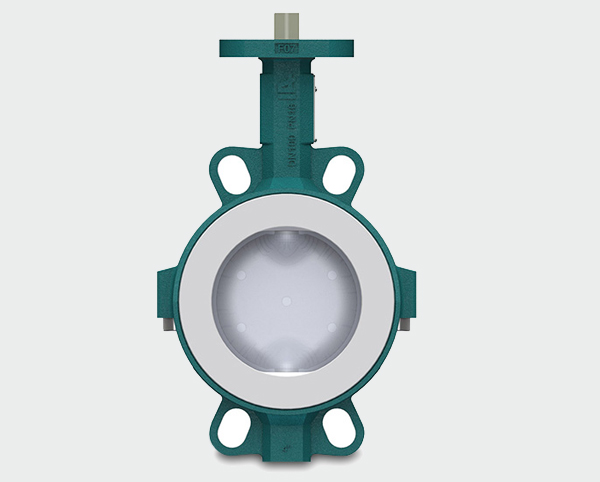

Variant: B1 - DN32-600, Ductile Iron body, 2 piece body, Stainless PFA coated disc, 1 piece disc and shaft and PTFE liner. Various disc materials available including special execution, cleaned high purity, Stainless body, FDA and ultraflon liner.

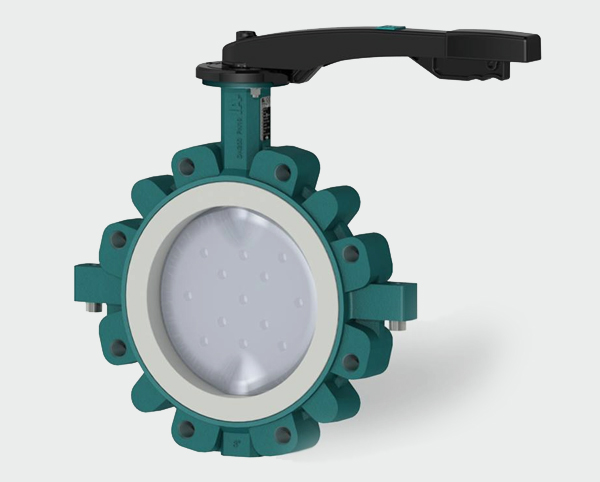

Variant: B3 - DN32-400, Ductile Iron body, 2 piece body, Stainless PFA coated disc, 1 piece disc and shaft and PTFE liner. Various disc materials available including special execution, cleaned high purity, Stainless body, FDA and ultraflon liner.

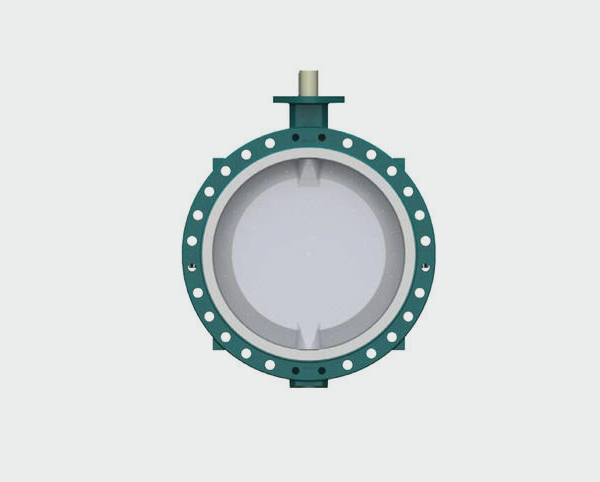

Variant: B4 - DN450-900, Ductile Iron body, 2 piece body, Stainless PFA coated disc, 1 piece disc and shaft and PTFE liner. Various disc materials available including special execution, cleaned high purity, Stainless body, FDA and ultraflon liner.

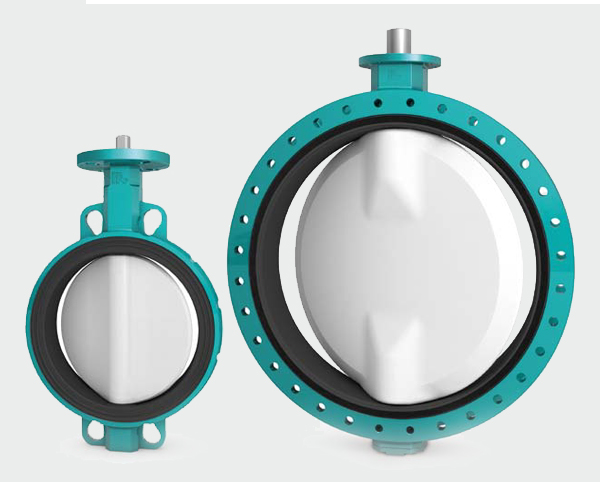

Variant: N/A - Superior material characteristics, excellent wear and chemical resistance, highest impact strength, anti-adhesion and self lubrication, low moisture absorption and low friction coefficient. Contact your local representative for more information .

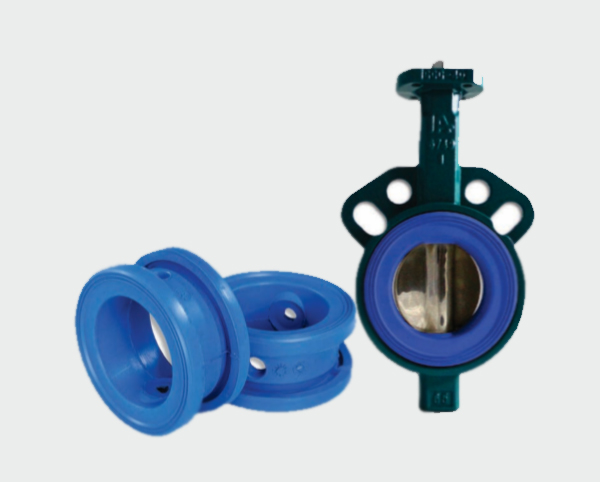

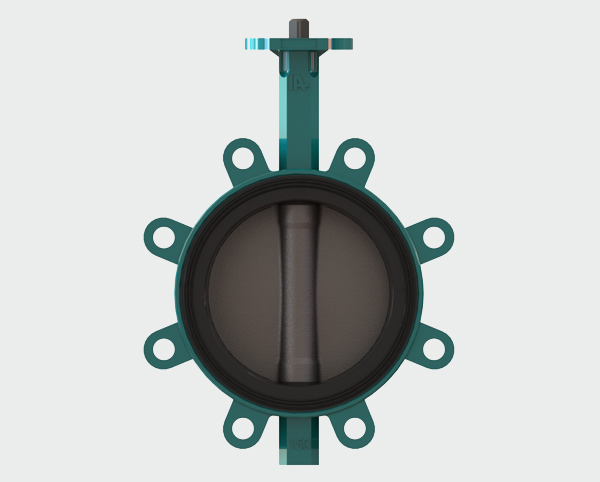

Variant: N/A - Desponia and Bianca, FDA approved liners and polished discs for the food industry. Dry media, powders, vibration and manual or automated. Contact your local representative for more information.

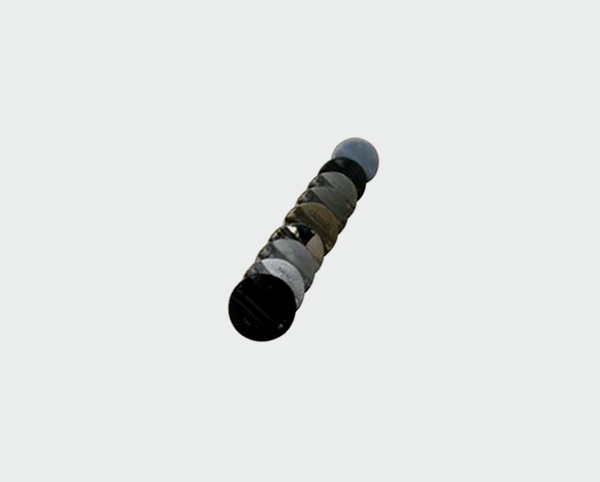

Variant: N/A - ANSI 316, alloy 926 super austenitic, super duplex, hastelloy, alu bronze. Disc coatings include, rilsan, polyurethane, epoxy, halar, rilsan polyamide 11 and chromed.

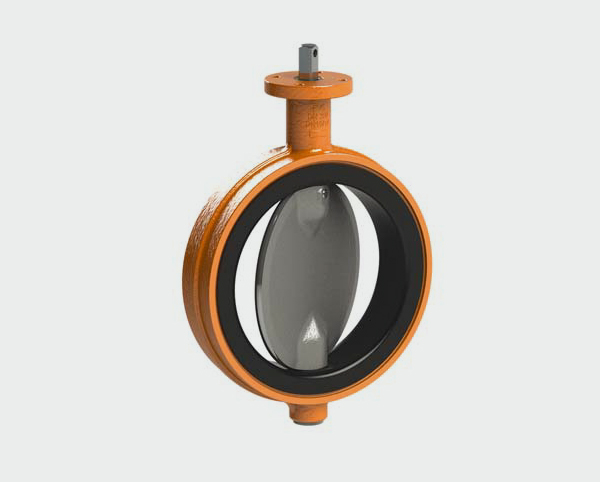

Variant: EVS - DN50-1400, PN16, Ductile Iron body, duplex disc standard and vulcanised lined EPDM. Available in AS 4087 and ANSI flange drilling. Other liners and disc materials available.

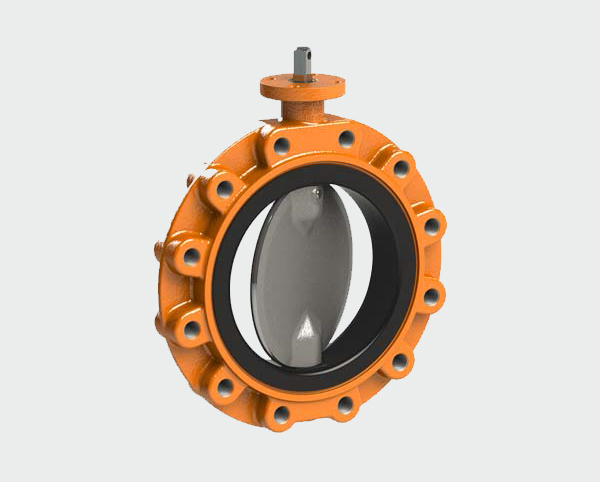

Variant: EVTLS - DN50-1200, PN16, Ductile Iron body, duplex disc standard and vulcanised lined EPDM. Available in AS 4087 and ANSI flange drilling. Other liners and disc materials available.

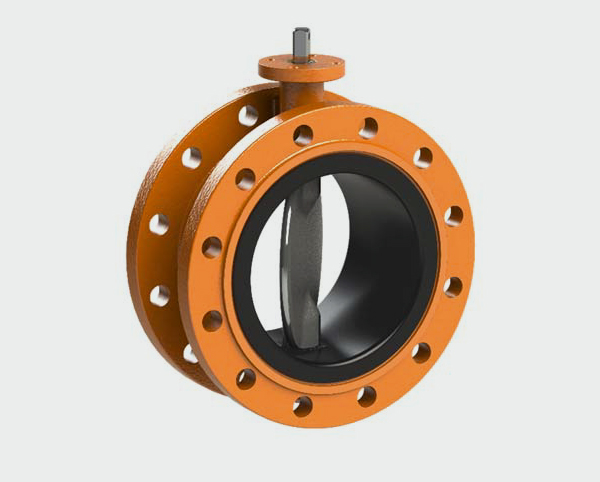

Variant: EVFS - DN50-2000, PN16, 21 or 25, Ductile Iron body, duplex disc standard and vulcanised lined EPDM. Available in AS 4087 EN 558-1 Series 13 face to face. Other liners and disc materials available.

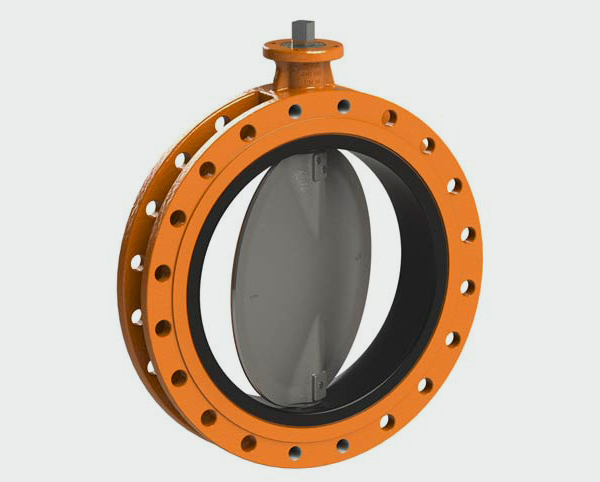

Variant: EVUS - DN600-2200, PN16, Ductile Iron body, duplex disc standard and vulcanised lined EPDM. Available in AS 4087 EN 558-1 Series 20 face to face. Other liners and disc materials available.

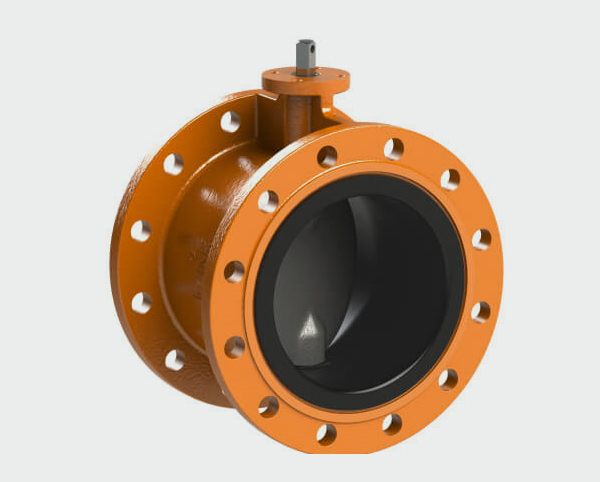

Variant: EVFL - DN50-1500, PN16, Ductile Iron body, duplex disc standard and vulcanised lined EPDM. Available in AS 4087 EN 558-1 Series 14 face to face. Other liners and disc materials available.

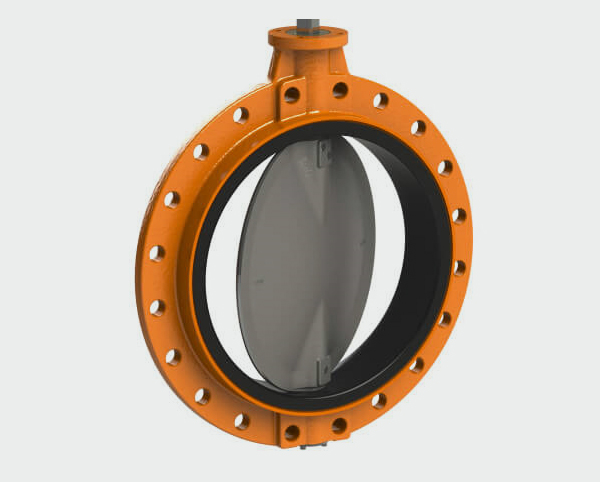

Variant: EVMS - DN350-1000, PN16, Ductile Iron body, duplex disc standard, vulcanised lined EPDM and EN 558-1 Series 20 face to face. Able to bolt up for end of line service.

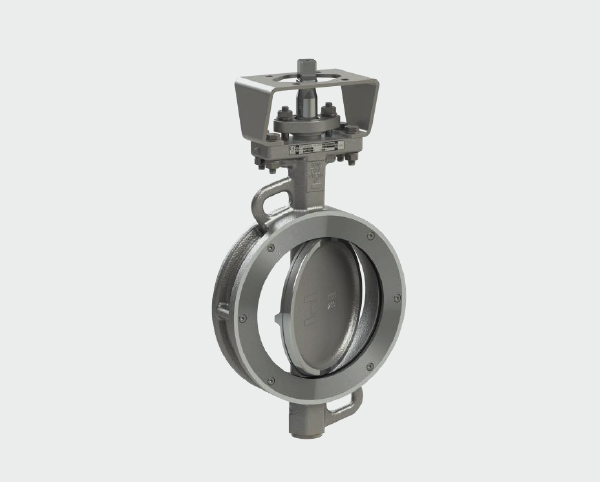

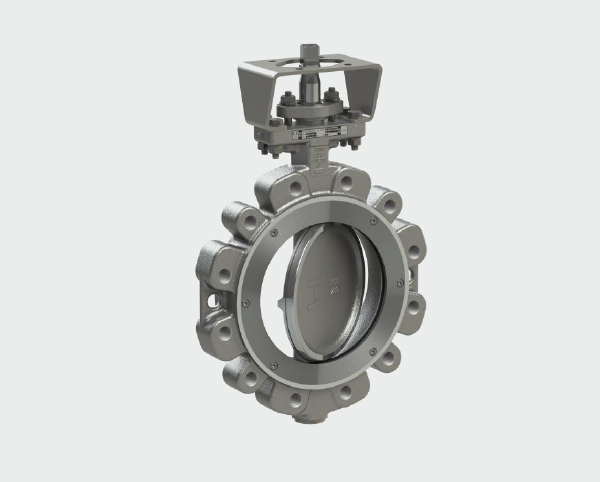

Variant: W201 & L201 - DN50-600, PN20, Stainless or WCB body, seal in body, CF8M disc with EN 558 Series 20 face to face. Various body and seat materials available. Other optional extras include API testing, antistatic design, metal or resilient seat and fire safe.

Variant: W201 & L201 - DN50-600, PN20, Stainless or WCB body, seal in body, CF8M disc with EN 558 Series 20 face to face. Various body and seat materials available. Other optional extras include API testing, antistatic design, metal or resilient seat and fire safe.

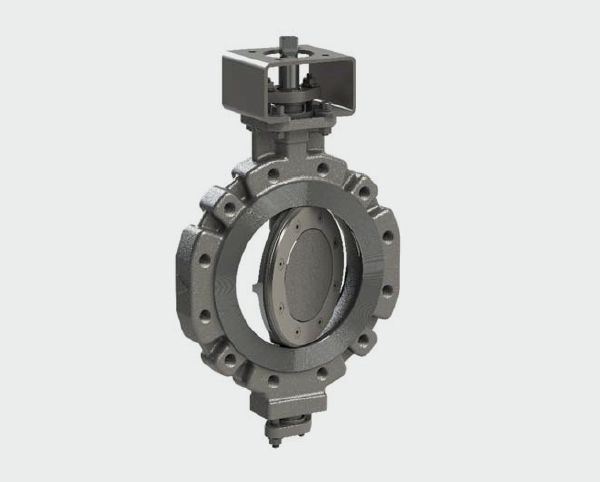

Variant: W201 & L201 - DN50-900, PN20, Stainless or WCB body, seal on disc, CF8M disc with EN 558 Series 20 face to face. Various body and seat materials available. Other optional extras include API testing, antistatic design, metal or resilient seat, fire safe, 50 bar Dynaxe W162 and Titanium body W921.

Variant: W201 & L201 - DN50-900, PN20, Stainless or WCB body, seal on disc, CF8M disc with EN 558 Series 20 face to face. Various body and seat materials available. Other optional extras include API testing, antistatic design, metal or resilient seat, fire safe, 50 bar Dynaxe W162 and Titanium body W921.

Double eccentric

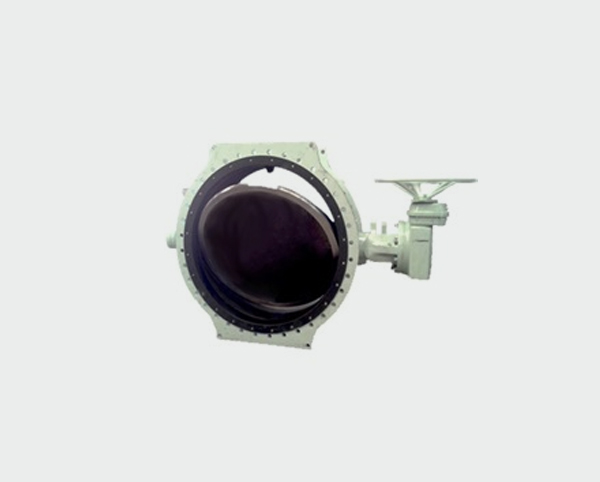

Variant: VSB - DN80-1800, PN35 working pressures, Ductile Iron body, seal in body, CF8M disc and EPDM seat. Available in AS 4087 EN 558-1 Series 13 face to face. Optional extra include PN16 & PN25 ratings, vulcanised lined NBR or EPDM and AWWA design.

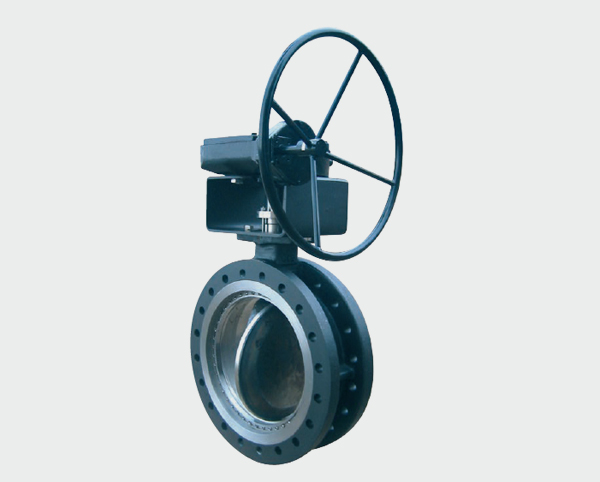

Variant: N/A - DN50-1400, PN50, triple offset metal seated and Stainless or WCB body. Perfect tightness in steam, gas, chemical, petrochemical and cryogenic applications.
