Knife gate valves
![ORBINOX BI-DIRECTIONAL KNIFE GATE VALVE BT model](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/rbinox-bi-directional-knife-gate-valve-bt-model.jpg?mw=720&rev=2d3f713b-c70e-4a15-9002-59b85f9508cf&hash=131BDD593B3AABAE0CB7D323BB2CE9DE)

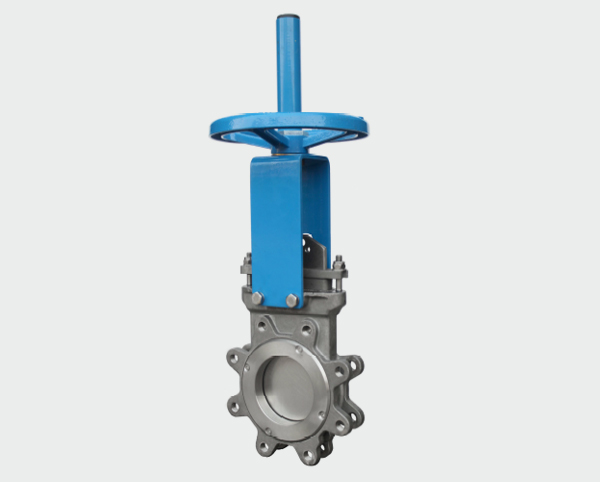

Orbinox Bi-directional knife gate valve
BT model
Variant: BT - DN50-900, PN10 up to DN600, MSS-SP-81, 316 Stainless Steel body & yoke and SS316L blade. Fully encapsulated seat sleeve, no cavities. Various bonnets and v-ports available including all types of operations.
![ORBINOX UNI-DIRECTIONAL KNIFE GATE VALVE](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/orbinox-uni-directional-knife-gate-valve.jpg?mw=720&rev=a50ffeec-0f71-4619-9013-5fae03b0ba64&hash=AA6D549FB9076703A4E6078CD49BBC3E)

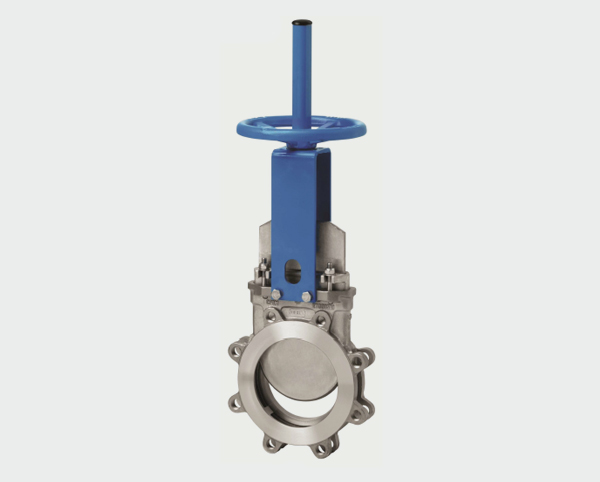

Orbinox Uni-directional knife gate valve
ET model
Variant: ET - DN50-900. PN10 up to DN600, MSS-SP-81, 316 Stainless Steel body & yoke and SS316L blade. Various materials, bonnets and v-ports available. Resilient or metal seat available upon request including all types of operations.
![](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/orbinox-square-port-knife-gate-valve-bc-model.jpg?mw=720&rev=cdb9f030-ca07-4c8b-a8e8-af9efc67af43&hash=2214837BFF0B32784526F44529AAFB80)

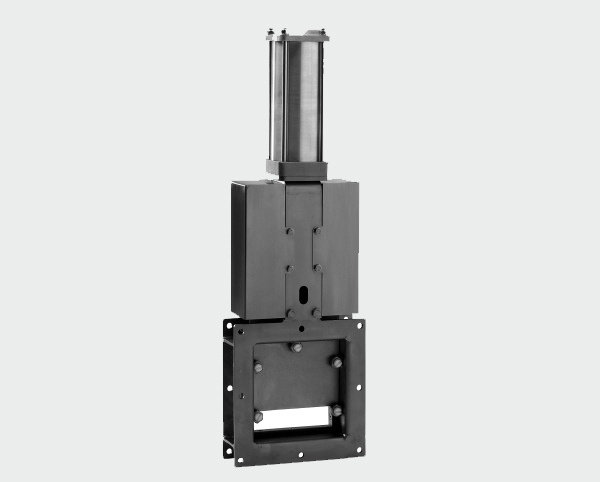

Orbinox square port knife gate valve
BC model
Variant: BC - From 150mm x 150mm to 600mm x 600mm, PN1 (higher pressures available), Carbon Steel body, 304 Stainless Steel gate. Optional body and gate materials available.
![](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/orbinox-slurry-bi-directional-knife-gate-valve-wg-model.jpg?mw=720&rev=cb056b4d-1400-482b-bc72-b234e4b93e81&hash=7C83D33958C995B3F9A46C5418757002)

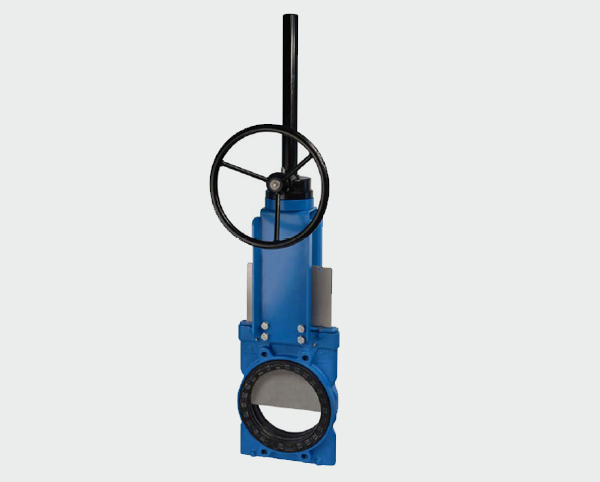

Orbinox slurry wafer knife gate valve
VG model
Variant: VG - DN50-900, PN5-10, Ductile Iron body, FBE coating, 316 Stainless Steel gate, natural rubber seat, wafer or flanged and table D/E or ANSI 150#. Optional extras include Electric and Pneumatic Actuation.
![ORBINOX SLURRY BI-DIRECTIONAL KNIFE GATE VALVE WG model](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/rubber-sleeve-knife-gate-valve.jpg?mw=720&rev=22fc5d5f-43bd-40d0-b356-272b503bfe0e&hash=5F863FEE56B19F4958607BB92359C276)

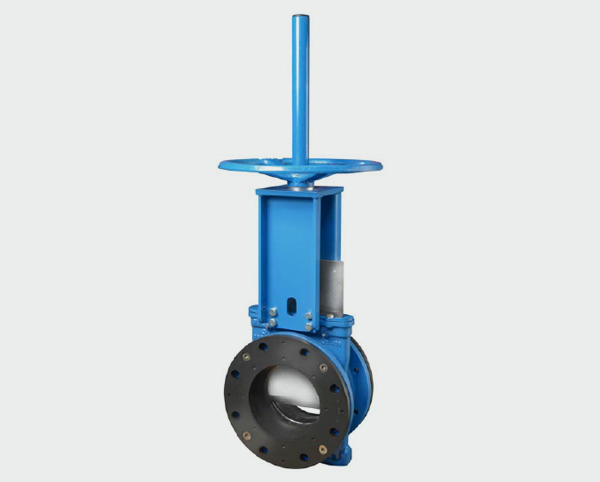

Orbinox slurry bi-directional knife gate valve
WG model
Variant: WG - DN50-900, up to PN10, fully flanged and two metal reinforced rubber sleeves. Larger diameters with high pressures available.
![](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/orbinox-slurry-bi-directional-knife-gate-valve-hg-model.jpg?mw=720&rev=52c26883-ab16-413c-896a-4329139bf47e&hash=F764D32B66648B19F4DA06779633BD9A)

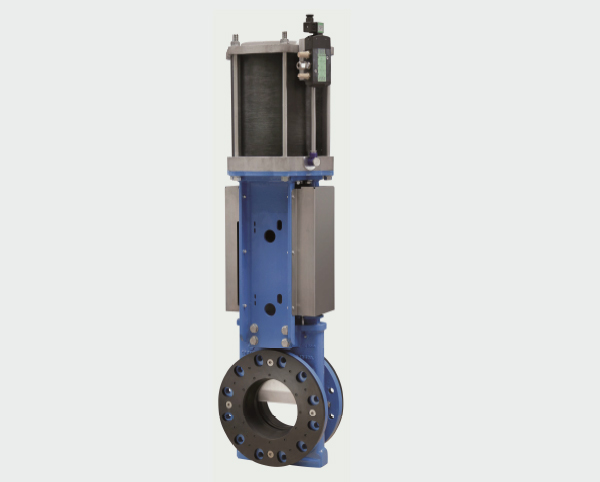

Link block Orbinox slurry bi-directional knife gate valve
HG model
Variant: HG - DN80-600, PN20, heavy duty slurry, metal reinforced, rubber sleeves and lock outs. Various gate materials available. Optional extras include bottom splash guards and flush ports. All types of operations available upon request.
![ORBINOX SPECIAL ENGINEERED SINGLE WEDGE VALVES](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/orbinox-special-engineered-single-wedge-valves.jpg?mw=720&rev=2b1e60d6-ad11-472a-b521-42057598df35&hash=C1CE514369FB5D543FF1DA19CD34831C)

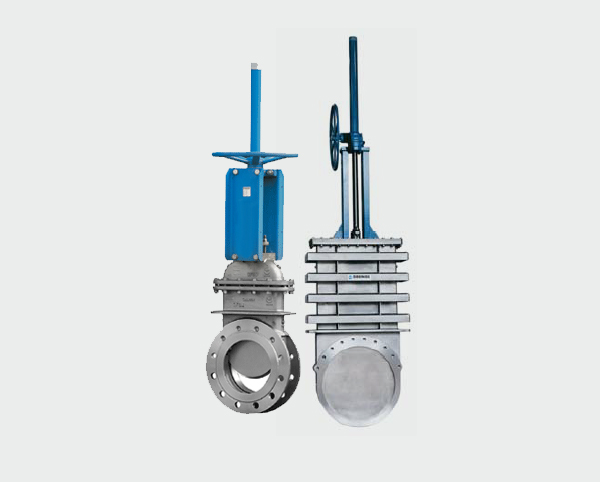

Orbinox special engineered single wedge valves
![ORBINOX O-PORT KNIFE GATE VALVE TL model](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/orbinox-o-port-knife-gate-valve-tl-model.jpg?mw=720&rev=3739775c-25ff-45ff-b1ac-18f71de5d433&hash=8C9AA11EC61E66B8B828B499AE7070FD)

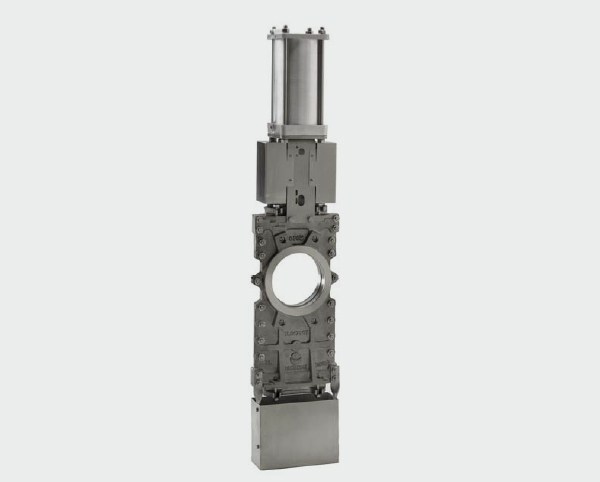

Orbixon O-port knife gate valve
TL model
Variant: TL - DN50-100, PN2-10, Stainless Steel body, 316 Stainless Steel gate and metal seat. Optional extras include flush ports, square port, special alloys, diamond port for control and bonneted design.
![ORBINOX DOUBLE GATE KNIFE GATE VALVE DT model](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/orbinox-double-gate-knife-gate-valve-dt-model.jpg?mw=720&rev=49ab8334-d323-4c14-ab88-9bb7c956af4a&hash=0D6FE7B8DCD41D4D809899DF13466AD3)

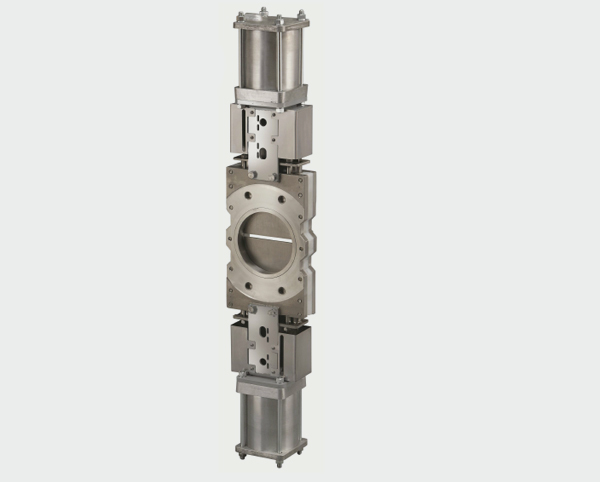

Orbinox double gate knife gate valve
DT model
Variant: DT - DN100-600, up to PN10, Stainless Steel body and cast or fabricated two-part bolted body. Larger diameters available.
![ORBINOX ROUND & SQUARE PORT KNIFE GATE VALVE](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/orbinox-round--square-port-knife-gate-valve.jpg?mw=720&rev=c674916a-4cbb-4905-9a34-6d0914c2e1ca&hash=ABCE7EAAA11DD0ABA07C4ACB71B190F1)

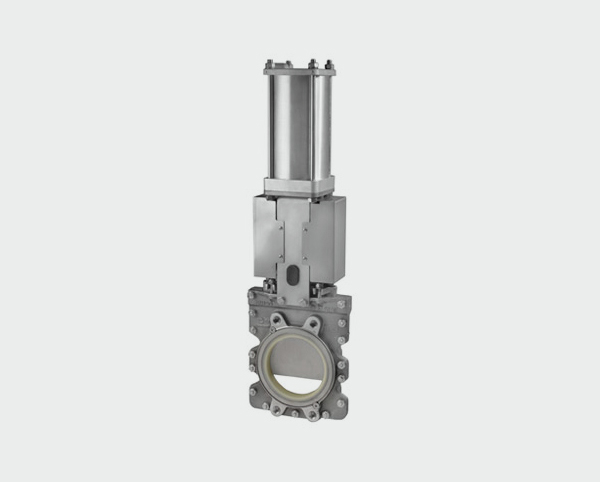

Orbinox round & square port knife gate valve
CR model
Variant: CR - DN100-600, up to PN10, Stainless Steel body and heavy duty design. Larger diameters available.
![ORBINOX HOPPER SHAPE KNIFE GATE VALVE CX model](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/orbinox-hopper-shape-knife-gate-valve-cx-model.jpg?mw=720&rev=5df7796d-6df7-4f4a-847e-618abcf05362&hash=35B5F85E7C2B81BDC2F3B41C81CB0318)

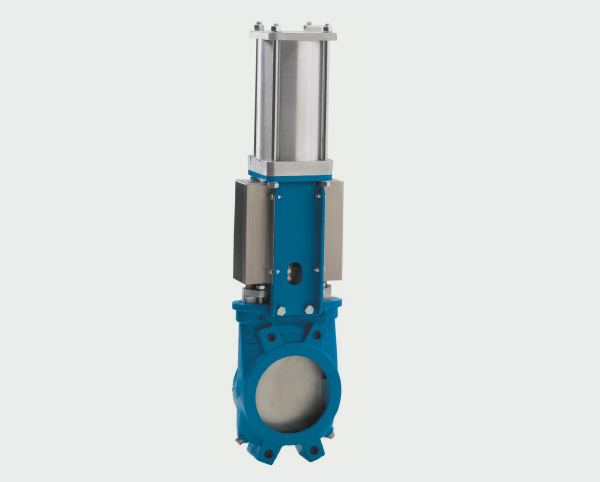

Orbinox hopper shape knife gate valve
CX model
Variant: XC - DN50-600, up to PN10 and Cast Iron body. Larger diameters available. Various flange connections available.
![CYL XD PRE SERIES 702 BI-DIRECTIONAL KNIFE GATE VALVES With handwheel or Pneumatic Actuator](https://www.avkindustrial.com.au/-/media/websites/local-websites/avk-flow-control-australia/images/ribbons/products/cylxdpreserties.jpg?mw=720&rev=4f356679-123d-4f06-a399-6847d141a1a1&hash=A3353EABE98BCFFE991C33B2D046D070)

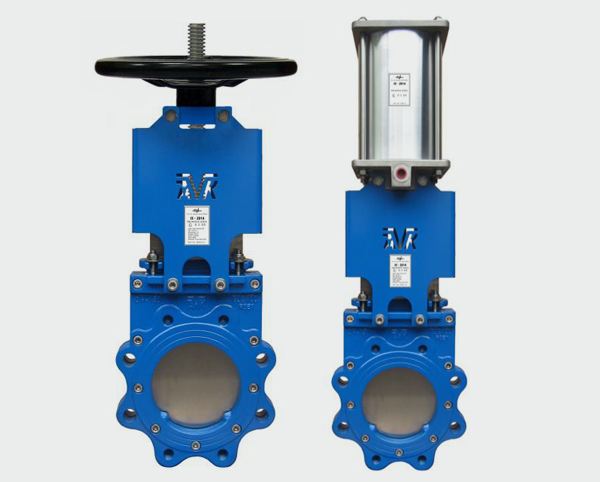

Cyl XD pre series 702 bi-directional knife gate valves
With handwheel or Pneumatic Actuator
Variant: 702 - DN50-600, Ductile Iron Body, PN10 to DN300. Reduced pressure in larger sizes from DN350-600 and protected reinforced seat with no cavities. Various gate materials available with sizing over DN600, EPDM or NBR seat. All types of operations available.
