1. Products

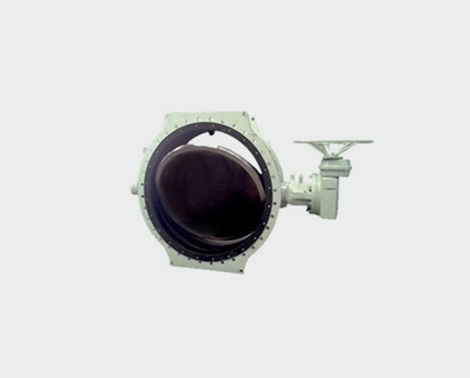

VSB DOUBLE FLANGED BUTTERFLY VALVE

Variant: VSB - DN80-1800, PN35 working pressures, Ductile Iron body, seal in body, CF8M disc and EPDM seat. Available in AS 4087 EN 558-1 Series 13 face to face. Optional extra include PN16 & PN25 ratings, vulcanised lined NBR or EPDM and AWWA design.
VSB DOUBLE FLANGED BUTTERFLY VALVE

AVK Series 570/42 gate valves

Variant: 570/42-003- DN450-600, PN16, resilient seated, flange drilling to AS/NZS 4087 B5 PN16 and AS 2129 Table E, ACC/CC, approved to AS/NZS 4020, gearbox, actuator and handwheel

AVK Series 570/92 gate valves

Variant: 570/92-003, DN450-600, PN16, resilient seated, flange drilling to AS/NZS 4087 B5 PN16 and AS 2129 Table E, Approved to AS/NZS 4020, ACC/CC, gearbox, actuator and handwheel
57/80 - DN80-300, PN25, resilient seated, flange drilling to ANSI 150# or Table F, clockwise close and cap operator. Available with handwheel. Larger sizes available upon request.

AVK series 57/80 gate valve

Variant: 57/80 - DN80-300, PN25, resilient seated, flange drilling to ANSI 150# or Table F, clockwise close and cap operator. Available with handwheel. Larger sizes available upon request.
570 - DN50-400, PN16, resilient seated, flange drilling to AS 4087 B5 PN16 and AS 2129 T/E. 570/90 for Key Cap, 570/98 for Handwheel and 570/92 for ISO Mount. Available with clockwise or anti-clockwise close and Electric Actuation. .

AVK series 570 gate valves

Variant: 570 - DN50-400, PN16, resilient seated, flange drilling to AS 4087 B5 PN16 and AS 2129 T/E. 570/90 for Key Cap, 570/98 for Handwheel and 570/92 for ISO Mount. Available with clockwise or anti-clockwise close and Electric Actuation. .
57/46 & 57/86 - DN50-300, PN16 & PN25, resilient seated and OS&Y. Dimensions to AS 2638.2, clockwise close and AS 4087 B5 PN16 drilling. 57/46 for PN16 and 57/86 for PN25. Optional extras include Table E drilling.

AVK series 57/46 & 57/86 gate valves

Variant: 57/46 & 57/86 - DN50-300, PN16 & PN25, resilient seated and OS&Y. Dimensions to AS 2638.2, clockwise close and AS 4087 B5 PN16 drilling. 57/46 for PN16 and 57/86 for PN25. Optional extras include Table E drilling.
55/74 - DN450-600, PN16, resilient seated, AS 4087 B5 drilling and AS 2638.2 approved. Available with clockwise or anti-clockwise close and Electric Actuation.

AVK series 55/74 gate valve

Variant: 55/74 - DN450-600, PN16, resilient seated, AS 4087 B5 drilling and AS 2638.2 approved. Available with clockwise or anti-clockwise close and Electric Actuation.
54/5X & 54/3X - DN700-1200, PN16, large metal seated gate valve, flange drilling to AS 4087 with gearbox or Electric Actuation. Available with bypass (refer to series 54/5X) and without bypass (refer to series 54/3X).

AVK series 55/5x & 54/3x gate valves

Variant: 54/5X & 54/3X - DN700-1200, PN16, large metal seated gate valve, flange drilling to AS 4087 with gearbox or Electric Actuation. Available with bypass (refer to series 54/5X) and without bypass (refer to series 54/3X).
AVK UL & FM Approved Fire Products

UL & FM approved fire products

Variant: N/A - UL & FM approved valves. Range includes, gate valves flanged, gate valves roll groove, butterfly valves roll groove, butterfly valves double flanged, lugged and wafer pattern, check valves flanged, check valve role groove.
GATE VALVE RISING STEM

Gate valve rising stem

Variant: N/A - DN15-1200, Carbon or Stainless Steel construction, stellite seats, class 150-2500#, flanged connection and rising or non-rising spindle. Socket weld and threaded connections available.
Variant: N/A - DN15-1200, Carbon or Stainless Steel construction, stellite seats, class 150-2500# and flanged connection. Optional extras include socket weld and threaded connections, pressure seal bonnet and Y-pattern.

Globe valve

Variant: N/A - DN15-1200, Carbon or Stainless Steel construction, stellite seats, class 150-2500# and flanged connection. Optional extras include socket weld and threaded connections, pressure seal bonnet and Y-pattern.
